Product Overview

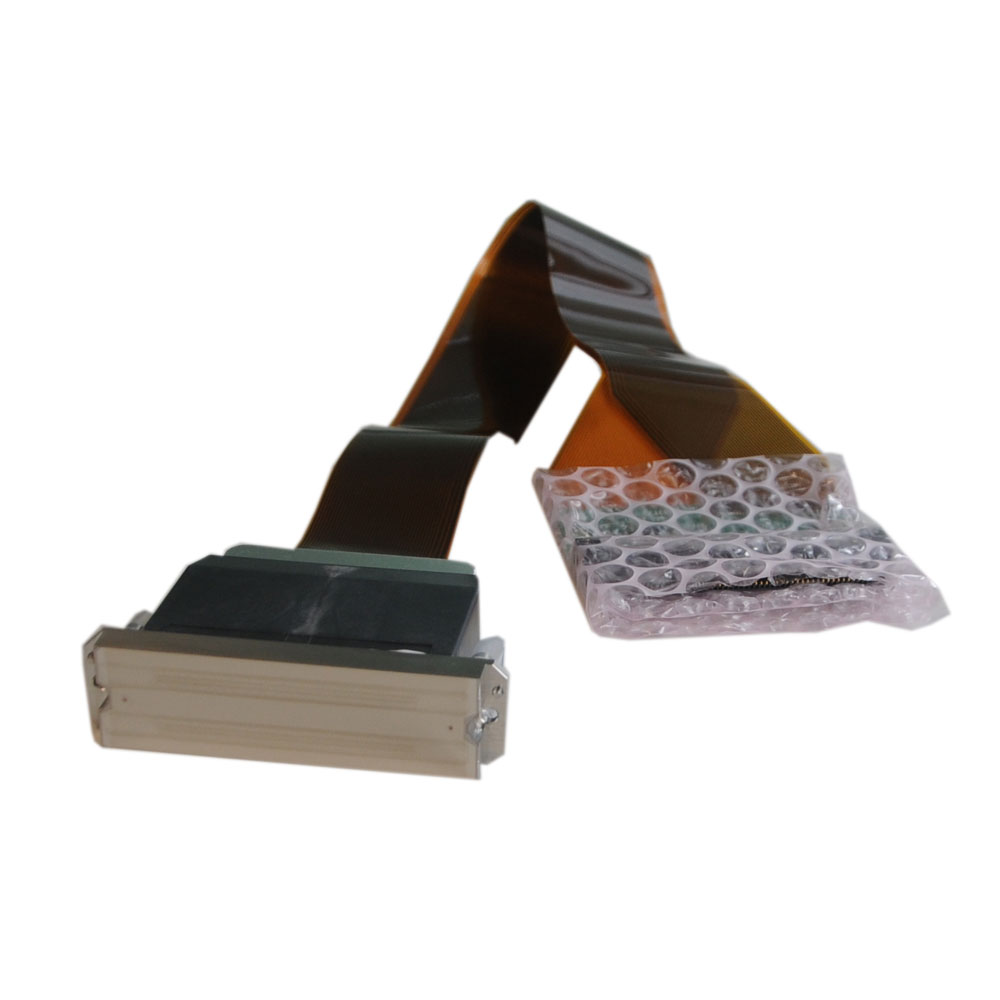

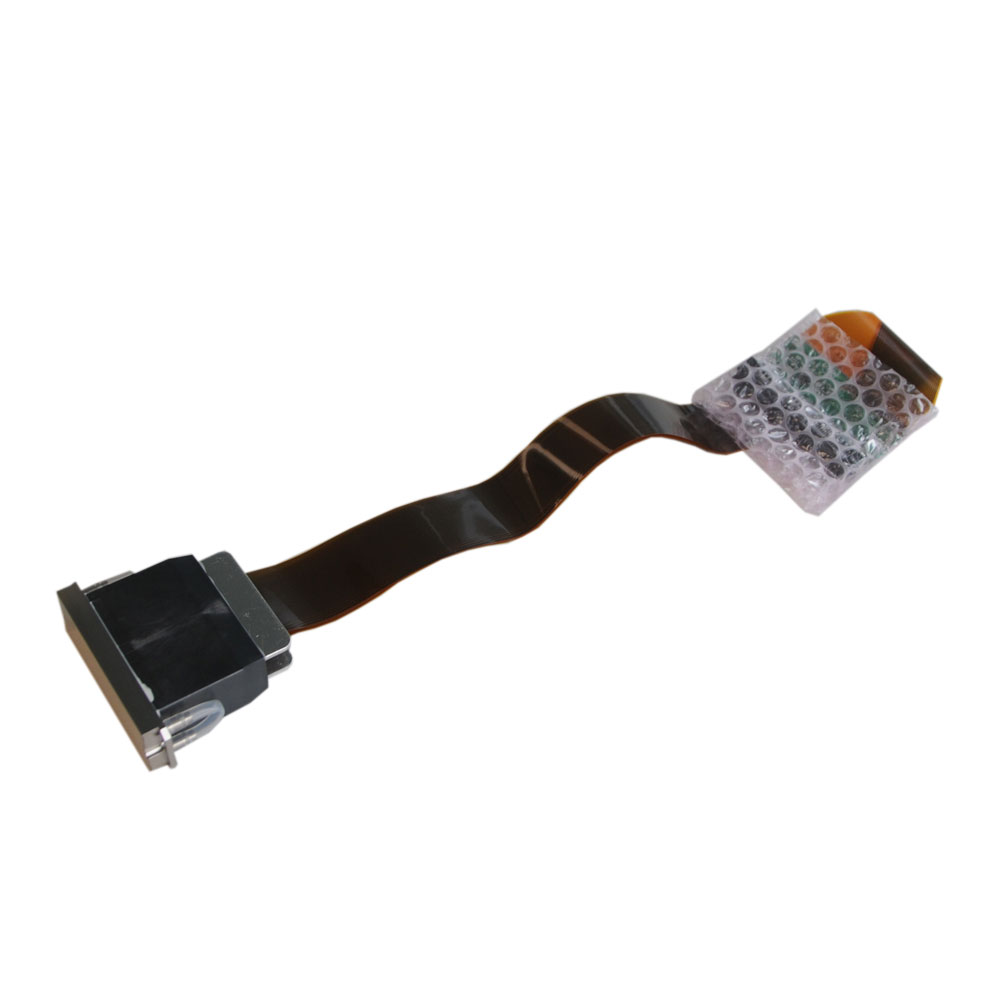

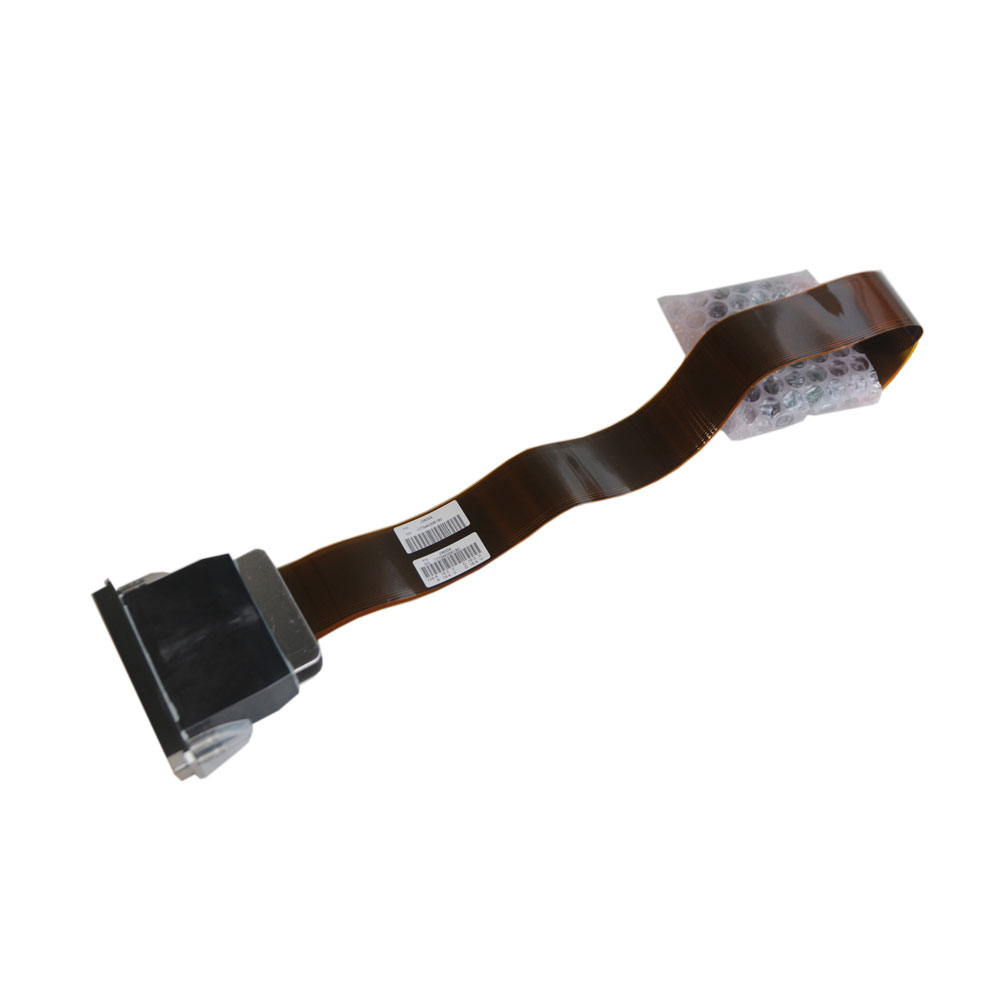

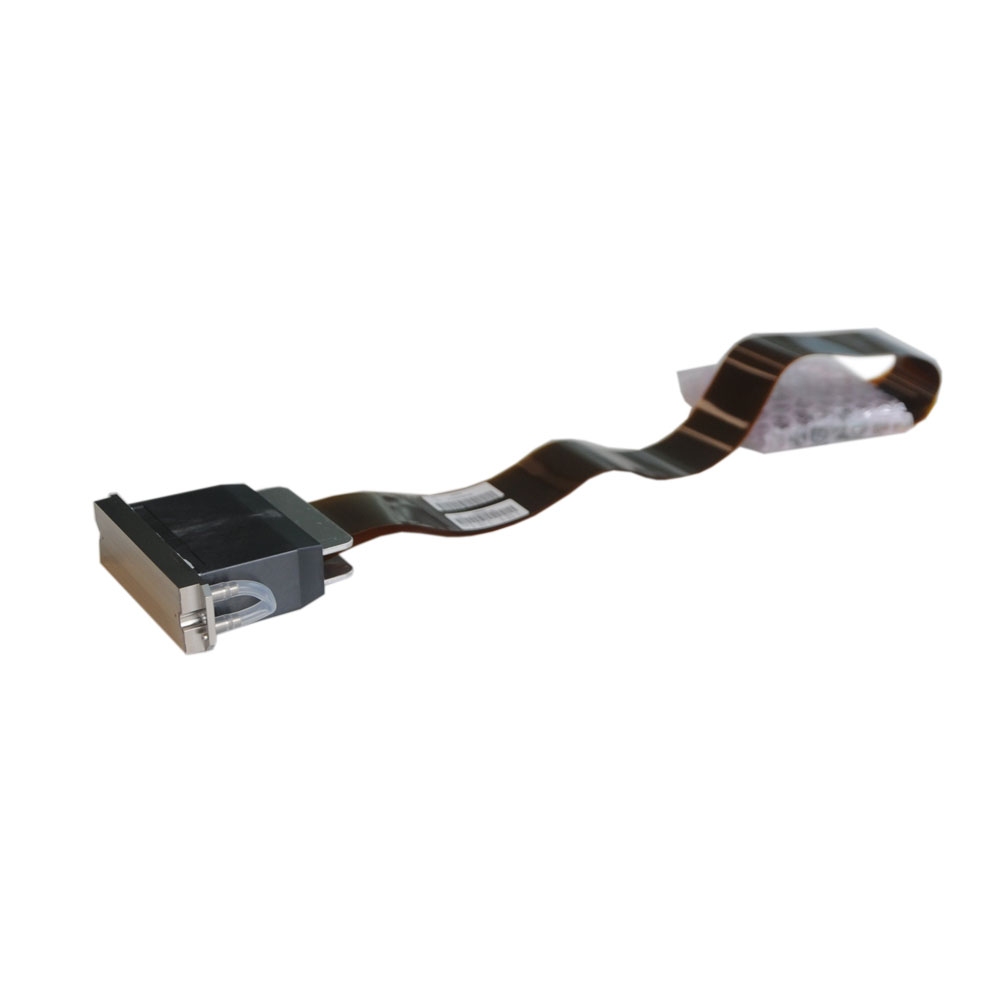

Ricoh Gen5 / 7PL Water-based Printhead, MH5421 (500mm, Two
Color, Long Cable) - J36004 is suitable for a range of
water-based printers. It supports up to 2 colours and has a
total of 1,280 nozzles. This Ricoh GEN5 is 500mm long in total
(head body + cable + connectors) with a 400mm long head cable.
Specifications
Model: J36004 (replacing
N221414D/221414F/221414K/221414P/221414C)
Dimensions: 89 x 25 x 69 mm (excluding cables)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle density: up to 600 npi
Piezo type: D33 Stacked PZT
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 80°C
Native drop volume: 7 pl
Drop volume range: 7 - 35 pl
Drop velocity: 7 m/s
Jetting frequency: Up to 60 kHz
Ink compatibility: Water Inks
Life: 100 billion actuations per nozzle
Printer Compatibility
ATP Color DFP1320
ATP Color DPP740 G5
DIP J4
Hollanders ColorBooster 230
Hollanders ColorBooster 250
MTEX Turbo Sub
Important Notes
-
The printhead is required to be installed by professional
persons.
-
Due to the nature of Printer Parts and the many factors that
go into installing them,
we do not accept returns or give refunds on electronic or
service parts. Once the package is delivered, it is the customer's
responsibility to check the package for damage. If there is
any visible damage on the package, please refuse the shipment
and contact us.
-
Please seriously pay attention on information of printhead
model while purchasing from us. Once received your item,
please inspect if the printhead matches up with the model you
required. If you have any problems, it is very important that
contact us as soon as possible before installing it onto
machine.
Please be aware that we don't accept any return and refund
once the printhead is installed on the machine.
