Product Overview

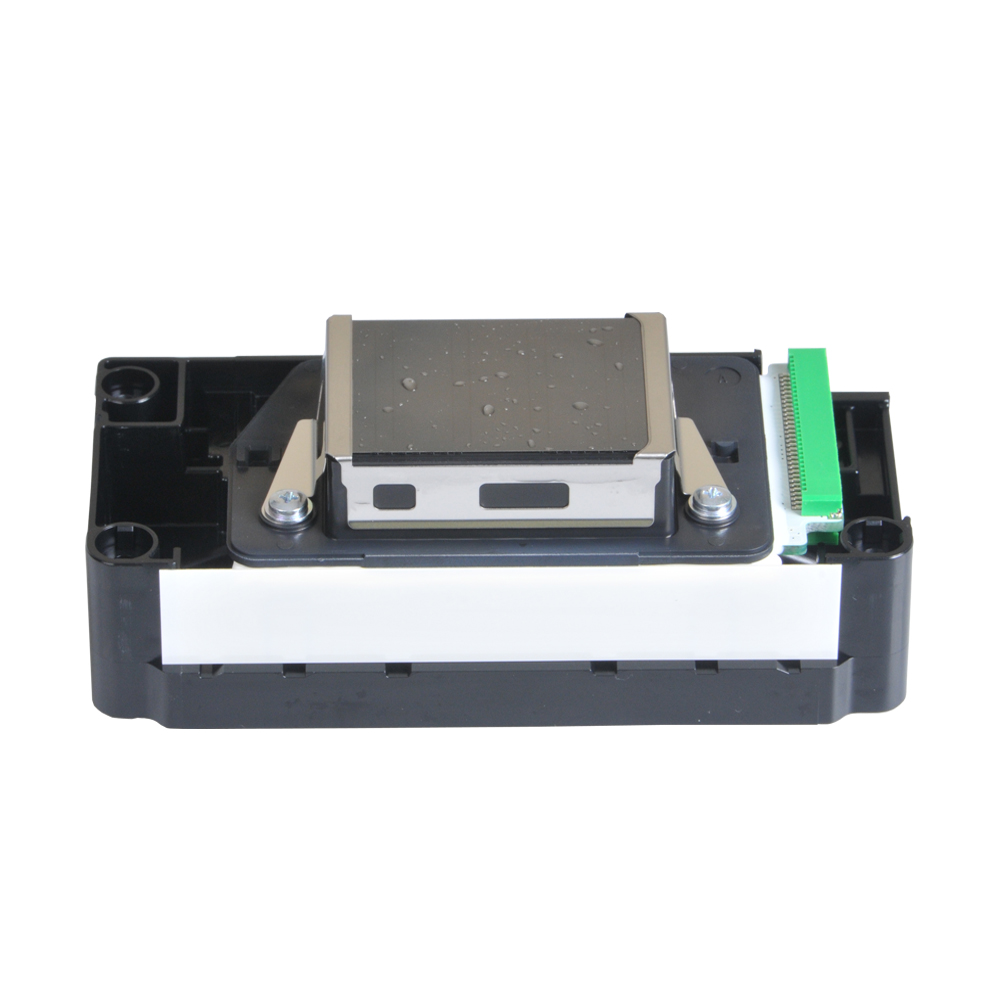

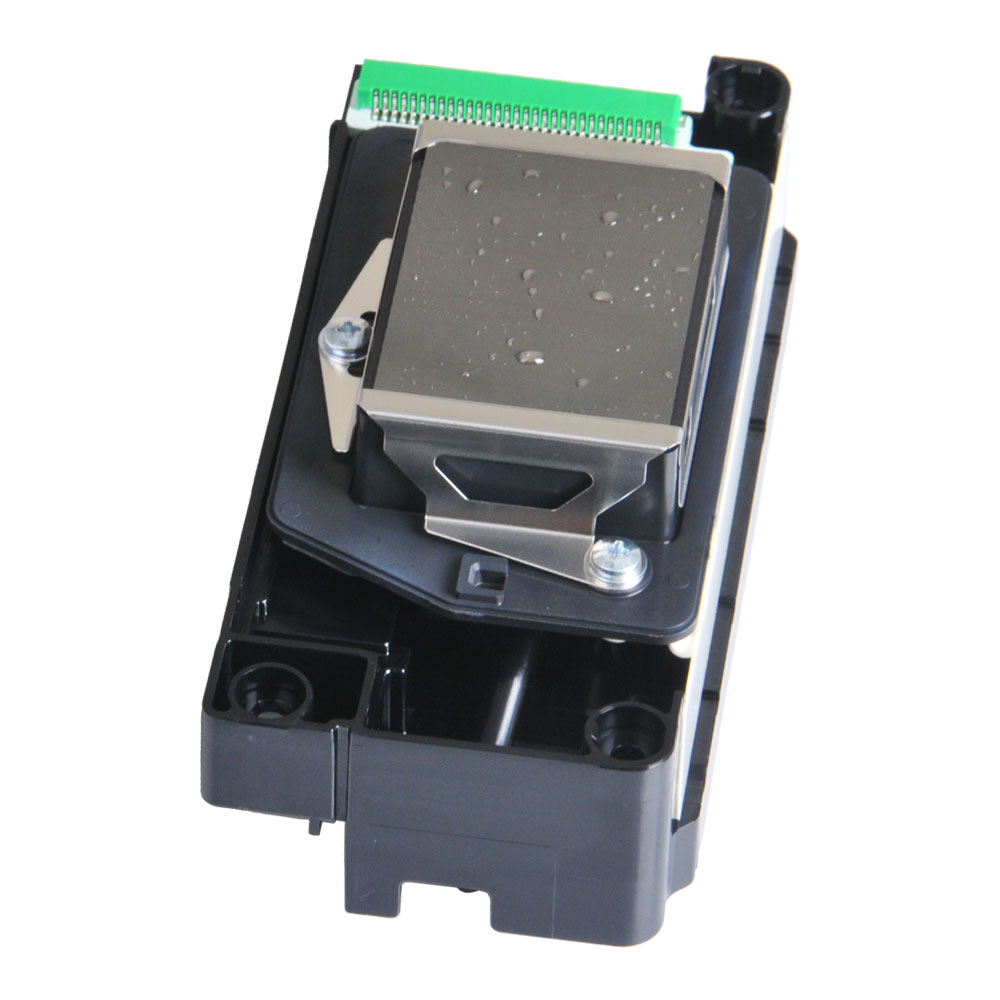

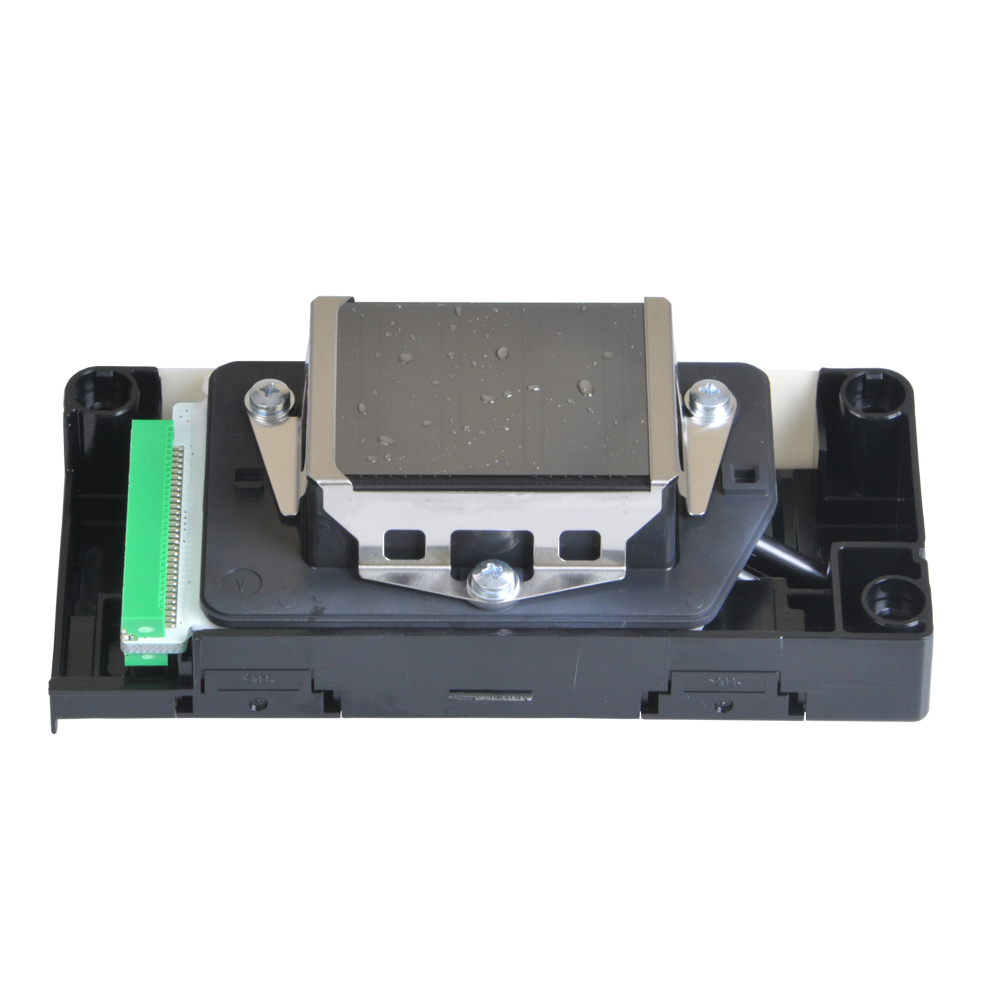

The Original Mutoh VJ Series Printhead (DF-49684) is a genuine OEM replacement printhead designed specifically for the following Mutoh printer models:

• Mutoh ValueJet VJ-1204
• Mutoh ValueJet VJ-1304
• Mutoh ValueJet VJ-1604
• Mutoh ValueJet VJ-1604W
• Mutoh ValueJet VJ-1608
• Mutoh ValueJet VJ-1614

Technical Specifications

• Micro-Piezo Technology
• 1440dpi Native Resolution
• 8 independent ink channels
• 180 nozzles per line
• 1.5 pL minimum droplet size
• 21 pL maximum droplet size
• 8 kHz firing frequency
• Compatible with eco-solvent and mild solvent inks
• 4-color printing capability (2 channels per color)

Important Notes

• The printhead must be installed by professional technicians only.
• Due to the nature of printer parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage. If there is any visible damage on the package, please refuse the shipment and call us at +86(10) 63705868 ext 607 or send email to [email protected]
• Please pay serious attention to the printhead model information while purchasing from us. Once received your item, please inspect if the printhead matches the model you required. If you have any problems, contact us as soon as possible before installing it onto machine. We don't accept any return and refund once the printhead is installed on the machine.
