Product Overview

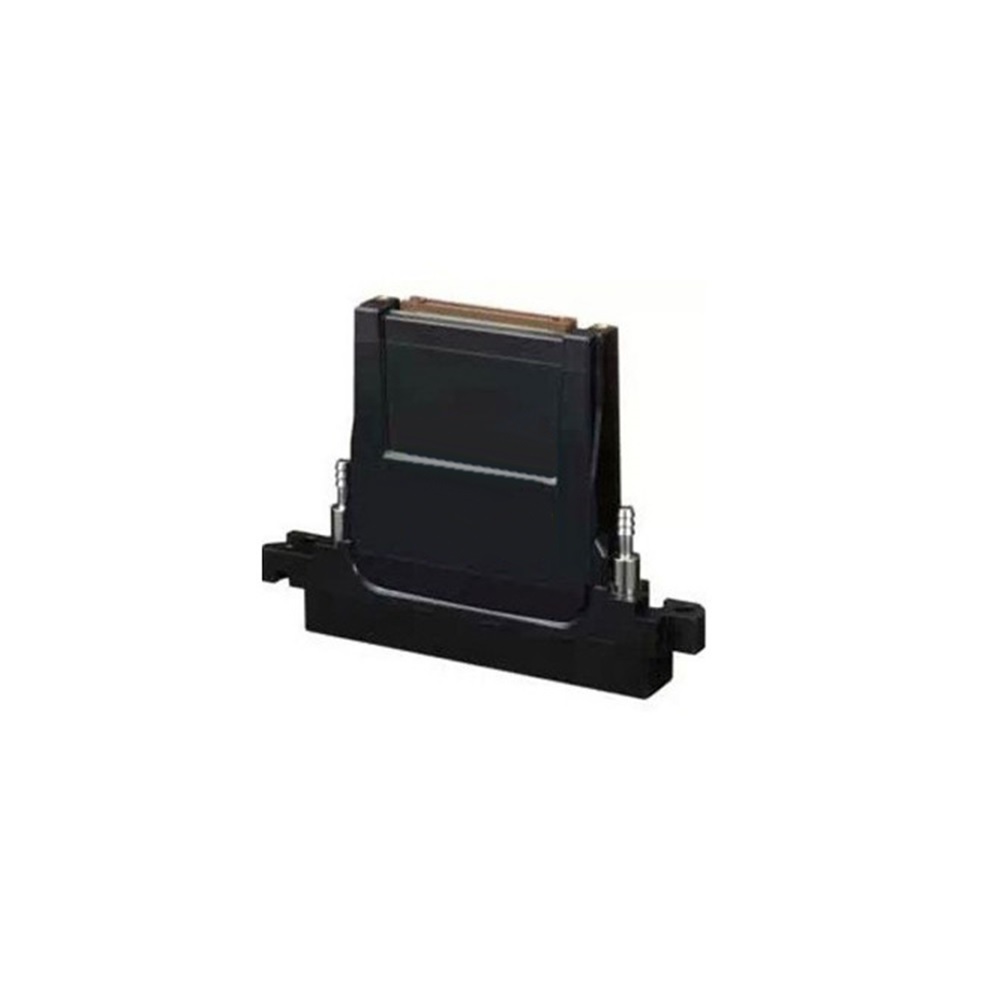

The Konica Minolta KM HS1000 printhead is a piezo on-demand
printhead featuring an all-nozzle Independent drive system with
a multi-line structure. In contrast with the existing 3-cycle
system drive, an independent drive system that enables
simultaneous emission from all 1024 nozzles has been adopted.
The high-density structure featuring 4 lines of 256 nozzles
aligned with high precision enhances positioning accuracy to
realize high-definition print quality.
This printhead can be used as a replacement of the Konica
Minolta KM1024i LHE.
We recommend to change the head cables when installing a new
printhead.
Specifications
Technology: Piezo Drop On-Demand
Native Resolution: 360npi (90npi x 4lines)
Cal. Droplet Size: 30 pico litre
Grayscale maximum drop count: 8 drops
Total nozzles: 1024 (256nozzles x 4lines)
Print Width: 72 mm
Firing Frequency: 27 kHz
Drive Voltage: 13+-3V
Ink Compatibility: UV (White)
Dimensions: W131 mm x D17 mm x H94 mm
Weight: 150g
Important Notes
-
The printhead is required to be installed by professional
persons.
-
Due to the nature of printer parts and the many factors that
go into installing them,
we do not accept returns or give refunds on electronic or
service parts. Once the package is delivered, it is the customer's
responsibility to check the package for damage. If there is
any visible damage on the package, please refuse the shipment
and contact us.
-
Please seriously pay attention to the
printhead model information
while purchasing. Once received, please inspect if the
printhead matches the model you required. If you have any
problems, contact us as soon as possible before installing it
onto the machine.
We don't accept any return and refund once the printhead is
installed on the machine.
