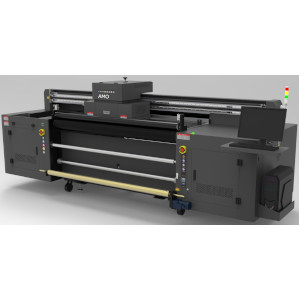

Product Overview
The Hybrid printer is combined the UV flatbed with uv
roll-to-roll printer together as one machine, which means it
can print on roll-to-roll soft material and also hard flatbed
board material.
Product Features
1. Print width 1.8 meters; with Konica 1024i high-speed inkjet
Printhead, variable ink drop technology;
2. Double linear high precision guide rail & slider + double
servo AC motor;
3. Professional Color management software, with Printhead
aging color function, ink saving/intelligent typesetting
function, color restoration higher (four colors can highly
restore the "gold/ silver" color);
4. Patented design of highly sensitive sprinkler head
anti-collision system; LED water cooling UV curing lamp;
5. Double air expansion Roller shaft + double tension floating
rod media up-and-down rolling system, no deviation & wrinkle
with high speed moving, higher stepping accuracy;
6. High-power electrostatic eliminator can effectively
eliminate problems such as flying ink and blur caused by
static electricity of materials;
7. The printing platform has the function of segmented
independent adsorption and independent adjustment of
adsorption size. With the strong silent turbine blower, it can
adapt to the adsorption of various materials with different
thickness and work for different complex materials.
Application Areas
The Hybrid printer is combined the UV flatbed with uv
roll-to-roll printer together as one machine, which means it
can print on roll-to-roll soft material and also hard flatbed
board material.
