AM1901XP Economical High-Speed Printer

Eco Solvent Printer

Home > Products > Eco Solvent Printers > AM1901XP

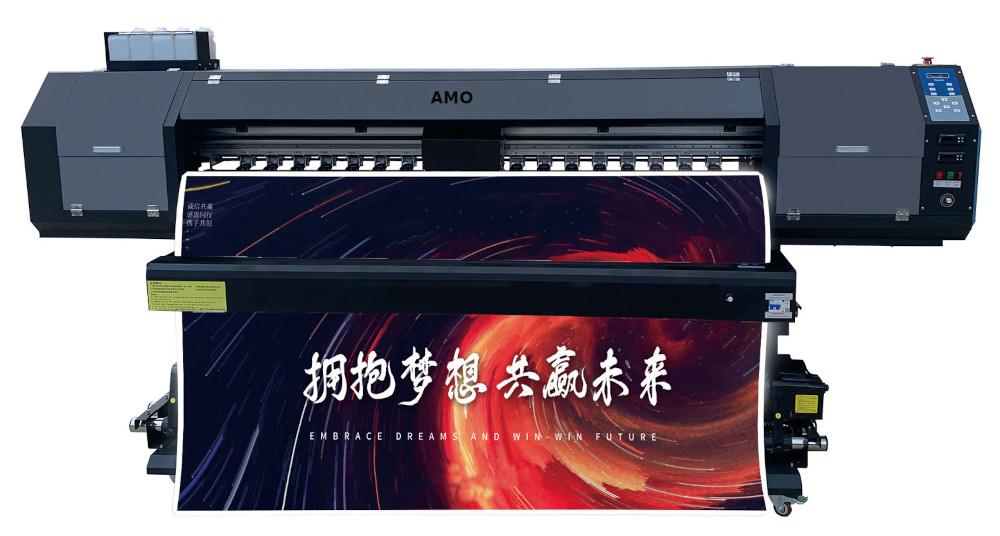

AM1901XP Eco Solvent Printer Main Image
Hover to zoom
AM1901XP Detail 1

AM1901XP

$2000-USD3000

AM1901XP 1.9meter Inkjet printer with 1 XP600 Printhead (the economic version)

Printing Width
1.9 m
Resolution
360 x 720 dpi
Print Heads
Epson XP600 print head (1 piece)
Printing Speed
12m²/h (4Pass Mode)

Ready to Order?

Get Quote & Support WhatsApp Chat

Professional support • Global shipping

Overview
Specifications
Applications

Product Overview

The AM1901XP is an economical printing solution designed for businesses seeking cost-effective yet reliable printing capabilities. With its 1900mm printing width and advanced XP600 print heads, it delivers exceptional print quality for a wide range of applications.

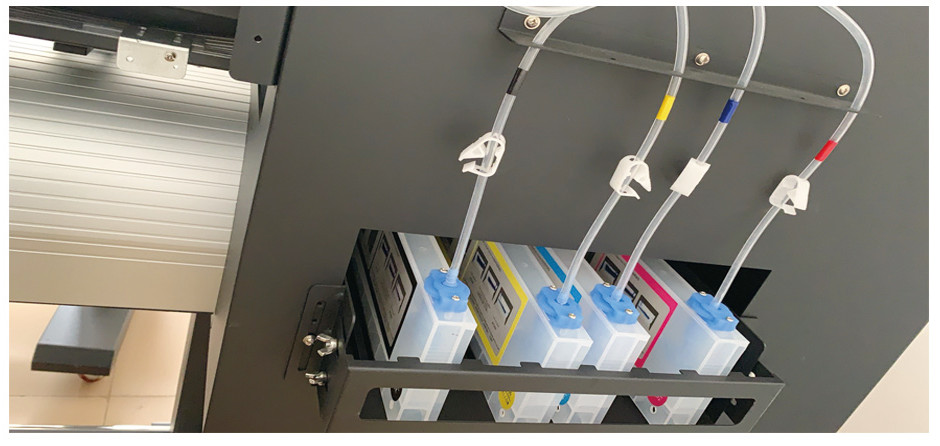

Ink supply system

AM1901XP Desc 1

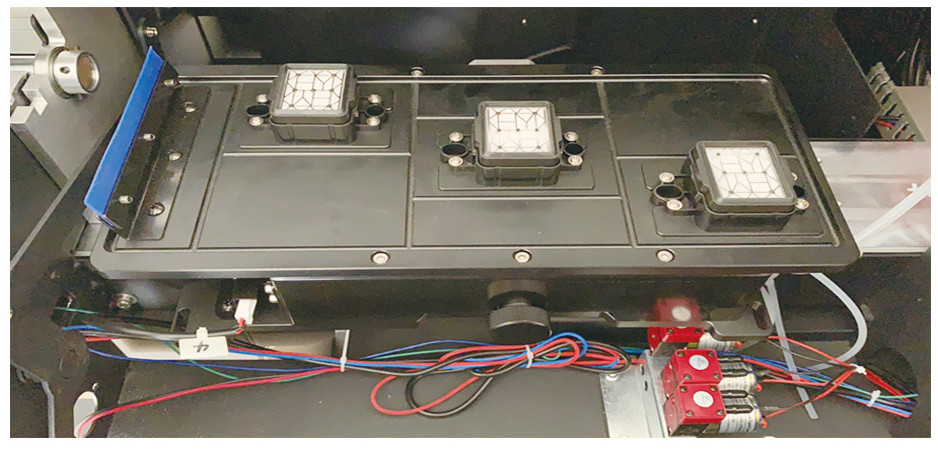

Print head Maintenance Station(Print Head cleaning station)

AM1901XP Desc 2

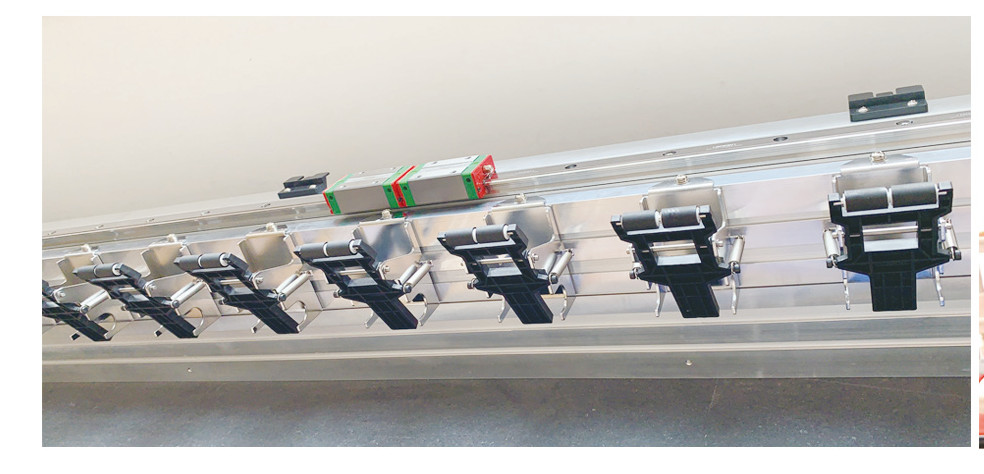

Media Pinch Roller

AM1901XP Desc 3

Technical Specifications

Printer Model AM1901XP
Printing Width 1.9 m
Maximum Media Width 1.9 m
Print Head Epson XP600 print head (1 pc)
Resolution 360 x 720 dpi
Printing Speed 12m²/h (4Pass Mode)
Printing Media PP Paper, Photo Paper, Vinyl, Transfer Paper, Blue back paper etc
Color CMYK
Ink Eco-Solvent ink,Sublimation Ink(or other water based ink)
Ink Capacity 1 Liter per Color
Port of Connection to Computer USB/NET
Print head to Media distance 2-3 mm
Printing Location system Raster and Servo system
Ink drying System Fan and heater
Motor and Driver system Combined high precision motor and driver for Carriage and Step
Printing System Sengyang
Ink Station Aluminum high precision Print head Maintenance Station.
Rip Software Maintop, RIIN, Photoprint
Photo format JPG,TIFF,BMP,PDF
Heating system Automatic Temperature Control system equipment.
Media supply system Automatic Media roll-up system
Maximum Media weight 90kgs
Power demand 50/60HZ 220V AC
Working Temperature 20-25 CESUS
Working Humidity 40-70%
Machine Size L2,980mm X W750mm X H1250mm
Net Weight 220 KGS
Packing Size L2,900mm X W600mm X H400mm
Gross Weight 250 KGS

Application Areas

The AM1901XP is designed to handle a wide range of printing applications, making it a versatile solution for various industries:
